Axion 1 Carbon Fiber Breast Board

REF: 11-229

Axion 1 Carbon Fiber Breast Board

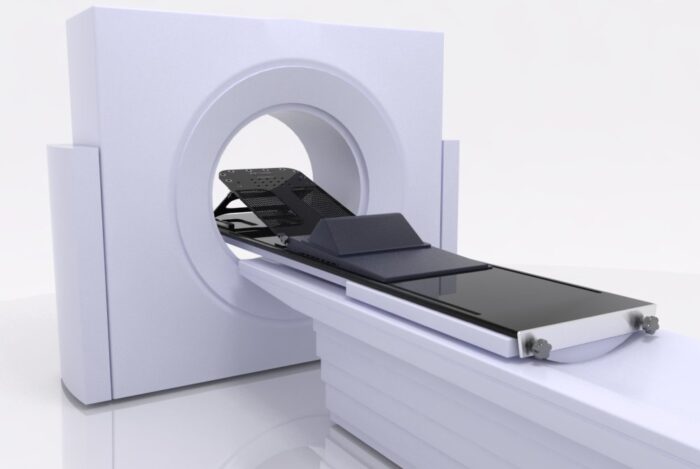

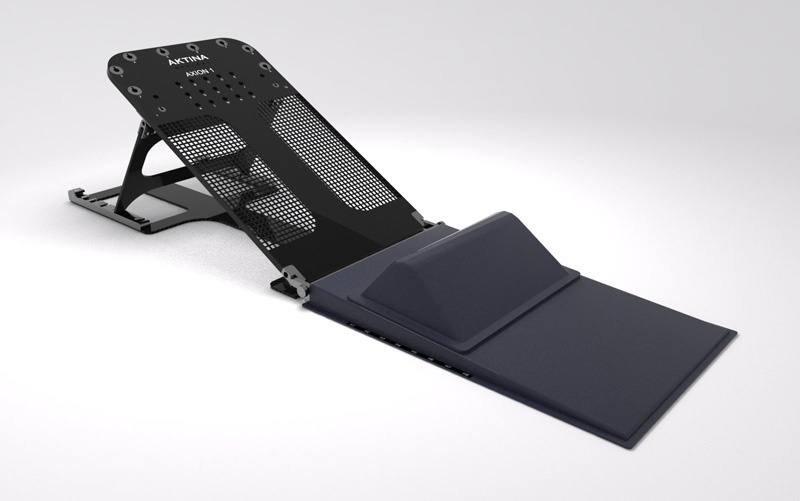

This Axion 1 Tilt Board provides superb patient setup and immobilization for breast treatments. It is fully indexed product, so that all the setup options can be recorded and easily repositioned for during patient treatments. It comes standard with a removable Hip-Stopper which provides a comfortable means for ensuring the patient is positioned properly along the length of the device. Lightweight and easy to transport, it fit easily within the smallest CT scanner bores.

The Axion 1 can be utilized with different arm positioning options to allow for maximum clearance and clinical flexibility on any LINAC.

Optional head supports – REF 11-220-05 and REF 11-229-09.

Technical Specifications

Fixed Angles 0, 10, 15, 20, 25, 50, 35 degrees
Weight Tilt board = 5.9kg (13 lbs)
Hip-stopper = 3.6kg (8 lbs)
Indexing Standard 2-pin indexing system
Mesh Size 16 1/8″ x 6 1/2″ (41 x 16.5cm)
Attenuation 0.5mm AI equivalence (at 100kVp photon energy)
Mesh Dimensions 6 9/16″ W x 16 1/8″ L
Board Dimensions 17″ W x 30 1/8″ L (43.2 x 76.5cm)
Maximum Loads Evenly distributed: 100kg (220 lbs)
End load: 50kg (110 lbs)
Mesh area: 75kg (165 lbs)
